Wholesale Brushless 4000W Self Balancing 1266wh 72V Double Samsung
Battery Off Road Electric Scooter
Product Description
I.About the Electric Scooter
The electric scooter is a fully open, all electric scooter with
innovative design and sensible mind which can easily figure out
what you think about, bringing you the unprecedented driving
experience you even experienced.
Working principle of electric scooter
The real innovation in this electric scooter, though, is that it
can stay upright, all by itself.The driver does not need to balance
it at all.This is achieved with the innovative use of 5 groups of
gyroscope under the substructure where it also lies the working
principle of this self balancing scooter.It simply follows where
your gravity center goes.With an integrated circuit PCB board
inside to control the signal flow, mobility scooter E8-2, style
self balancing scooter moves forward as you lean forward and slows
down as you lean backward or lower your gravity center.Braking
device is totally unnecessary in this golf scooter.This golf
scooter can even turn 360 degree with 0 radius, making it flexible
under narrow space.
Feature of new model Electric Scooter
Features:
1. Double battery system: the mileage /range can be up to 70km.It
is a better choice for outdoor use and rental tour business.2 pcs
Samsung Lithium 72V.8.8Ah.The battery power is 2*72v*8.8Ah=1266WH.
2. Brushless motor: 2 ps 2000W brushless motor.Enviromental and
Powerful.The max climb capability is 45 degrees.
3. Large size and strenghen gear box: 21:1 reduction ratio,40CR
steel gear, 85% efficiency,150kg max load
4. 21 inch off road shockproof tire with strong flange plate , more
stable driving on uneven road.
5. Digital LCD screen on the top of handle. It is convenient to see
battery ,speed,and range.
6. Turn signal.

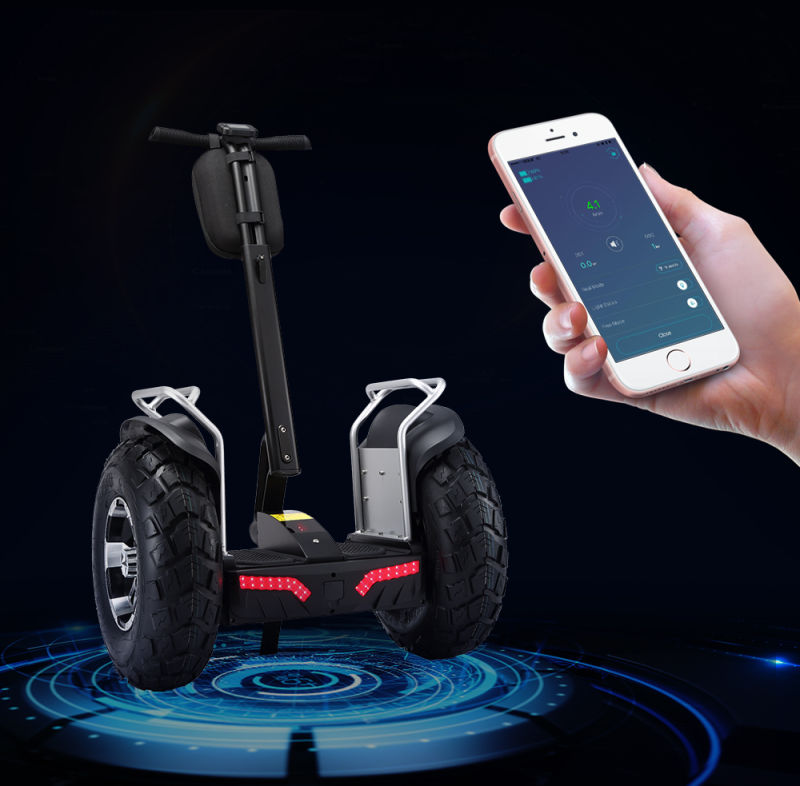

7. App function controlled by mobile
electric scooter E8-2 Specifications |
| Gross Weight/Net Weight | 66kg/54kg |
| Dimension/Size | 85*45*58 cm |
| Max. cruise speed | 20km/h |
| Max. load | 150kg |
| Max. mileage | 70km |
| Max. climb capability | 45 degree |
| Min. turning radius | 0 degree |
| Charging time | 7-8h |
| Battery | 2 pcs Samsung Lithium 72V.8.8Ah ,1266Wh |
| Voltage | 100v-240v |
| Max. power | Brushless 4000W motor with big gearbox |
| Life of battery | 1-3 years |
| Tire | 21 inch Kenda tire shock-absorb with strong flange plate |
| Wheel | 12inches/26cm,Superior integrated aluminum magnesium alloy |
| Height of handle | 800-1100 mm adjustable |
| Height of footplate | 10 inches /26cm |
| Specifications of footplate | 11.5*25 inches |
| Max. height above ground | 120mm |
| Standard pressure | 250kpa |
| Colors | 7 colors available |
| Certifications | CE, FCC, ROHS |
| |
| Packing Detail of Escooter |
| Inner: Carton | Outer: Plywood box |
| CTN demission: | 88*52*72cm |
| Volume: | 0.3cbm (About 75 PCS per Container (20feet#) |
| |
| Packing list (Standard kits/parts) |
| Handle: 1 PC | Key: 2 PCS | User manual: 1 PC | Fender: 2 PCS |
| Driving handle: 1 PC | | Pedal mat: 2 PCS | Tire: 2 PCS |
| Battery charger: 1 PC | |
II About US
With three years of Experience in golf electric scooter, advanced
tech and skilled workforce, we are confident to supply our electric
scooters direct to you at competitive prices with no middle man.
We offer an extensive range of stylish self balancing scooter
designs in eye-catching colours.There's bound to be a self
balancing scooter to get you whizzing off down the road.Don't
forget to check out our latest three model E8 and ESIII and
ESOI(off road).
OEM service provided, welcome to consult for more information.
III .Application Field--Where is electric scooter can be used?
This Mobility self balacing scooter can be used for leasing,
tour,patrol.
It has wide application as below:
Personal travel, amusement and short-distance travel
Renting in tourist attractions, exhibition hall,hotel,parks,and
amusements playgrounds
Intelligent robot moving platform
Industrial zone, factory, warehouse personal transport
IV FAQ
1.How to order?
Simply inquiry us by your wanted model.With deals made, we can send
the product to your door through DHL, FedEx, UPS, etc.
2.How does electric scooter move?How does it balance?
Electric scooter senses the lean of the rider with the assistance
of two-dimensional inertial navigation system and two
accelerometers that sense the angle of the electric scooter with
respect to gravity at
100 times per second.It balances the rider by applying forces to
the ground in the direction of the lean.If you lean forward the
golf scooter applies motor torque to the wheel to push it forward,
bring you upright and balance you.When you lean back, it applies
reverse torque to slow you down and balance you accordingly.
V.Warranty and After Sales Service:
Pls maintain self balancing scooter according to the user manual so
that you can keep the electric scooter in the best condition.
Any problems about your electric scooter,please contact us.And we
have professional staff who will supply best after service for you,
and also answer any
questions or problems from you.
You only need tell us and describe the problem when electric
scooter has problem,we can know what the problem.
We will send you the new replacement after you send us the broken
parts. And we will teach you how to replace it by video.
Welcome to consult us for details!!!
VI. Contact Us
Contact person: Kerry Ding
Business Time: GMT 9:00a.m.-6:00p.m. (Monday - Friday)
Tel: +86-188-2312-5858
Email : Kerry at ecoriderscooter.com
Testing video on Youtube:
Off road model ESOII/E8: https://youtu.be/hXRc8ZxsCYE
Off road model ESOI-L2:http://youtu.be/uJYNY18SQm0
Tags: off road segway, off road electric scooter, off road self
balancing scooter, 2 wheel balance scooter.
